Feature Extraction Rule View

How to filter, view, and display baseline and custom FE rules in Score Builder

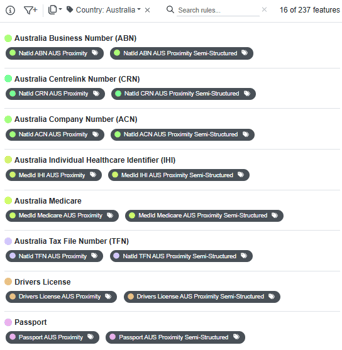

The right-hand section of the Score Builder contains a list of baseline and custom feature extraction rules, grouped by Data Element Name (DEN).

The view can be filtered in a variety of ways and there's a 'quick add' option to add all filtered rules to a score definition. You can also view the configuration of a rule, export and import custom FE rules, and download the baseline ruleset.

Feature Rule Properties

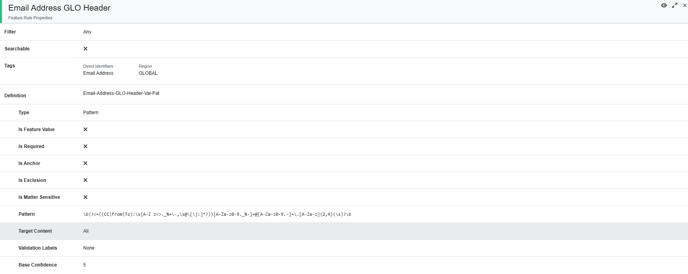

Highlighting a single FE rule will enable the icon which when clicked, will display the properties of the rule:

Add Filtered Rules to Score

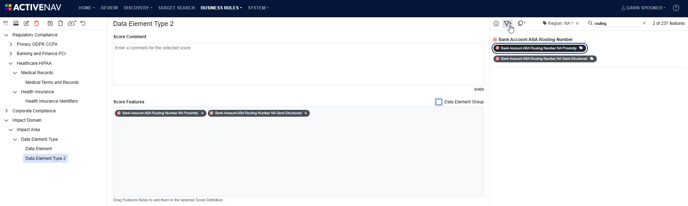

To quickly add many FE rules to a single score definition, after applying a filter, you can use the button. This will add all the filtered rules to the currently selected score definition.

Import and Export

Clicking the button will reveal the import and export options menu:

Here, you can download or upload your custom feature extraction rules as well as the baseline ActiveNav Cloud ruleset.

The import/export feature supports JSON format. Any custom uploads should be checked for correct formatting, otherwise the import may fail.

For assistance in configuring custom feature extraction rules, please contact your customer success representative.

Filter by Tags

When FE rules are configured, they can be given one or more tag attributes. When in Score Builder, the rules list can be filtered by these tags.

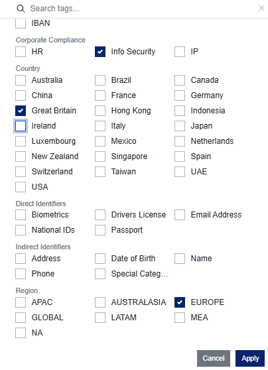

Clicking will reveal the dynamic tag list. Select one or more options to filter by and click Apply.

Filter by Name Search

It is also possible to use the text search field to perform a 'contains' search on a rule's name.

Searching by name can be used in conjunction with tag searching to quickly and easily reduce the number of rules to view.
